Ultimate Mixed Heat Shrink Kit 144pcs Various Colours - 65mm lengths

In stock
SKU : K-ULTIMATE-MC-144
Special Offer
£1.39 £1.67

One Kit of 144 Pcs

Please click the variations below to add to your product selection

0 Items in your selection £0.00 Selection Total
Back
Add Personalisation

  • Text
  • Number
  • Text & Number

Text Element

Save Back

Text & Number Element

Save Back

Number Element

Save Back
Skip Personalisation | Request a Callback

  • Buy 5 for £1.29 £1.55 per and save 7%
  • Buy 10 for £1.19 £1.43 per and save 14%
  • Buy 50 for £1.09 £1.31 per and save 22%

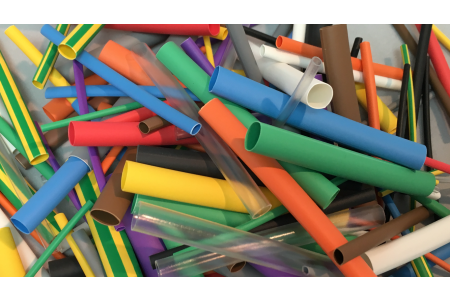

main product photo

The kit contains every colour that you will ever need and is ideal for model makers, electricians and general purpose uses, as well as being ideal for automotive use.

Details

Ultimate Mixed Heat Shrink 65mm Sleeves Multiple Colours Kit - 144pcs

  • Easy to use

  • Flexible

  • General purpose heat shrink

The kit contains every colour that you will ever need and is ideal for model makers, electricians and general purpose uses, as well as being ideal for automotive use.

Our Heat Shrink is a tough, flexible, general purpose tubing with good resistance to common fluids and solvents and a high dielectric strength. Available in 2:1 shrink ratio its unique blend of chemical, electrical and physical properties make it suitable for a wide range of applications including electrical insulation, strain relief, cable bundling, colour coding and identification of wires, cables, pipes and electrical and electronic components and mechanical protection.

Contents of Kit:

The kit contains 2 pcs of each size in the chart below in each colour shown bellow.

Black, Red, Yellow, Blue, Green, White, Orange, Violet, Brown, Grey, Clear and Green/Yellow

Internal Diameter Approx Flat Dia Fully Shrunk Dia
1.0mm 2.0mm 0.33mm
1.5mm 3.5mm 0.36mm
2.5mm 5.0mm 0.36mm
3.0mm 6.0mm 0.44mm
5.0mm 9.0mm 0.56mm
6.0mm 11.0mm 0.56mm
More Information
More Information
Quick Search Code 102753
Applications

This Kit can be used for all kinds of applications along with electrical insulation, wire/cable bundling, cabling joints, mechanical protection and many more such as repair jobs.

Specification

  • Shrinkage Ratio: 2:1 (will shrink to half its supplied diameter)

  • Material: Polyolefin

  • Minimum Shrinkage Temp: +70°C

  • Full Shrinkage Temp: +110°C maximum

  • Operating Temp: -55 ° C to +125 ° C

  • Tensile Strength: 10.4 Mpa

  • Dielectric Strength: 20 kV/mm

  • Manufacture Specification: ISO9001

  • Flammability: Flame Retardant (except clear)

  • Approvals: UL Approved
