Open Style Clip On E Type Interlocking Cable Markers size 40 Colour Coded

In stock
Only %1 left
SKU : HTP-PC40-C/C
Not Set
As low as £19.99 £23.99

1 pack (1,000 pcs) & 0 - 9 Kit (10,000 pcs)

Please click the variations below to add to your product selection

0 Items in your selection £0.00 Selection Total
Add to Compare
Back
Add Personalisation

  • Text
  • Number
  • Text & Number

Text Element

Save Back

Text & Number Element

Save Back

Number Element

Save Back
Skip Personalisation | Request a Callback

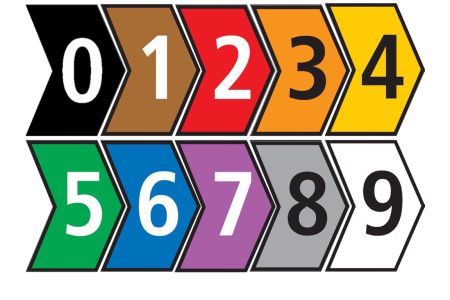

main product photo

Clip On Open Cable Marker for post-termination size 40, recommended for Ø 5.0mm - 6.2mm (6.0mm²)

Details

Recommended for Ø 5.0mm - 6.2mm (6.0mm²)

  • Size 40
  • Fast and Efficient
  • Snap-on Installation
  • High Environmental Tolerance
  • Perfect for Electrical Pneumatic & Hydraulic Applications

These cable markers are a direct alternative to the E-Type Cable Markers.

Features and Benefits:

  • Fast, snap-on-installation
  • Securely positioned with the help of special legs
  • Open marker sleeve for post-termination marking
  • These markers are chevron cut i.e. interlocking type
  • High environmental tolerance and excellent legibility
  • Height = 6.7mm, Width = 6.9mm, Text Height = 4.0mm
  • Designed for electrical, pneumatic, and hydraulic applications
  • Designed to interlock when fitted enabling easy alignment of multiple character markings

We can provide further options on the above if you require a bespoke pack of different numbers or letters, please contact our Sales team on 01942 723 101 or email at sales@hilltop-products.co.uk

More Information
More Information
Quick Search Code 101579
Applications

The way you use the markers is to identify cables and wires to label them up or to identify if one has a fault and need repair,

  • Mainly used by electricians

  • To identify and label different wires within an electrical installation

  • Reduces the time spent on repairs and maintenance

  • Enhancing the safety of electrical installations

  • Classifying cables decreases the risk of failure by preventing users from tampering with or disconnecting cables they shouldn't.

Specification

  • Material: Cadmium-free rigid PVC to special formula.

  • Colours: Black on White, Black on Yellow or to International resistor colour code.

  • Print: Hot foil stamped.

  • Temperature range: The shape is permanent between -30°C and +60°C.

  • Properties: Self-extinguishing, good resistance to chemicals, gamma and UV radiation.

  • Standard legends: 0-9, A-Z, +, -, earth, / or blank. Special symbols available to order.
