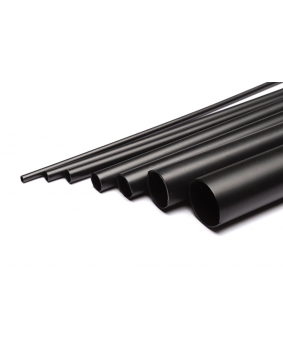

SCL-6.4-0-STK TE Connectivity Size 6.4/2.0mm (1/4") Semi-rigid Adhesive Lined - Commercial Grade

HTP-SCL-6.4-0-STK TE Connectivity Size 6.4/2.0mm (1/4") Semi-rigid Adhesive Lined

• 3:1 Shrink Ratio
• RoHS Compliant
• Supplied as 1.2 Mtr Lengths
• Commercial Grade Version of: SCL-1/4-0-STK

Encapsulates components, splices, and terminations where moisture resistance and mechanical protection are required. The encapsulant melts and flows to fill surface irregularities of the substrate. While still hot, the tubing can be blocked to form a wire breakout.

Raychem TE Connectivity SCL is designed to provide one-step moisture-proof encapsulation of a wide variety of electrical parts including wire splices, breakouts, and electronic components.

Manufactured from radiation cross-linked polyolefins, SCL has an inner wall that is adhesive lined and is forced into the crevices and interstices by the shrinking action of the outer tubing. When cooled, the entire mass becomes a rigid, tough, homogeneous covering with controlled wall thickness. SCL shrinks between 17% and 40% of its supplied diameter according to size and therefore few sizes are required to cover a range of irregular shapes with widely varying dimensions.

Unaffected by most solvents and chemicals and non-corrosive in contact with electrical joints, SCL also has high dielectric strength.

Other sizes are available upon request.

Features and Benefits:

• High Quality
• Semi-Rigid Flexibility
• High Dielectric Strength
• Non-Military Specification
• Operating Temperature Range: -55°C to +110°C
• Rugged protection against abrasion, vibration, and flexing
• Splash-resistant, moisture resistant covering; not intended for use where immersion in fluids is required

For more information on the SCL Adhesive lined Heatshrink range that is of Military specification please click here.
