DSG DERAY-H Heat Shrink Tubing

In stock
Only %1 left
SKU : CPX55
Not Set
As low as £1.99 £2.39

Available in various pack sizes

Please click the variations below to add to your product selection

0 Items in your selection £0.00 Selection Total
Add to Compare
Back
Add Personalisation

  • Text
  • Number
  • Text & Number

Text Element

Save Back

Text & Number Element

Save Back

Number Element

Save Back
Skip Personalisation | Request a Callback

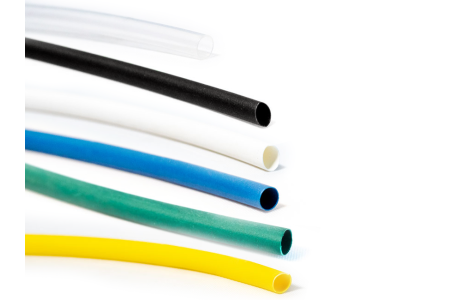

main product photo

DSG DERAY-H is a thin-wall, flame retardant, flexible heat shrink tubing which is manufactored from crosslinked polyolefin. It provides high dielectric strength, and excellent resistance to common fluids and solvents. It provides reliable protection and insulation in automotive and industrial environments.

  • Halogen free

  • High Flexibility

  • Flame Retardant

  • Excellent Resistance to Abrasion and Mechanical Stress

Show more

Details

DSG DERAY-H Heat Shrink Tubing

DERAY-H is made of crosslinked polyolefin, making it highly versatile. It has been manufactured to withstand the rigorous demands of industrial and automotive applications.

It provides a snug fit over irregularly shaped components thanks to its 2:1 shrink ratio. It has a high dielectric strength which provides excellent electrical insulation and has brilliant resistance to common fluids and solvents enhances durability in harsh environments.

Features and Benefits:

  • Lightweight
  • Shrink ratio: 2:1
  • Quick and Easy Installation
  • Suitable for various applications
  • Self-extinguishing properties (colors only)
  • Continuous operating temperature: -55°C to 135°C
  • Shrink temperature: 110°C min
More Information
More Information
Quick Search Code 104715
Applications

  • Strain relief

  • Cable insulation

  • corrosion protection

  • Abrasion and mechanical protection

  • Bundling electrical or mechanical components

Specification

Specifications:

  • Flexible

  • Suitable for various applications

  • Continuous Operating Temperature: -55°C to 135°C

  • Shrink Temperature: 110°C

Property Test Method Typical Performance
Tensile Strength IEC 60684-2 15,0 MPa
Elongation IEC 60684-2 450%
Longitudinal Change ASTM-D 2671 10% max
Secant Modulus ASTM-D 882 175 MPa max
Specific Gravity ASTM-D 792, A-I 1,25 g/cm3
Elongation after Heat Aging
(168 hrs at 150°C)		 IEC 811-1-2 300%
Tensile Strength after Heat
Aging (168 hrs at 150°C)		 IEC 811-1-2 12 MPa
Elongation after Heat Shock
(4 hrs at 200°C)		 IEC 811-1-2 400%
Tensile Strength after Heat
Shock (4 hrs at 200°C)		 IEC 811-1-2 13 MPa
Low Temperature Flexibility ASTM-D 2671 Meth. C Does not break at -55°C
Flammability FMVSS302 flame retardant
