CFM 1500 Size 38.1/12.7 None Adhesive Lined Black Heat Shrink

In stock
Only %1 left
SKU : CFM-1500-38.1/12.7-0-STK
Not Set
As low as £9.99 £11.99

Pack quantities are different and will appear once you have selected your size

Please click the variations below to add to your product selection

0 Items in your selection £0.00 Selection Total
Add to Compare
Back
Add Personalisation

  • Text
  • Number
  • Text & Number

Text Element

Save Back

Text & Number Element

Save Back

Number Element

Save Back
Skip Personalisation | Request a Callback

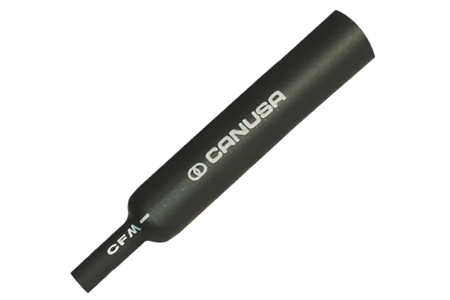

main product photo

CFM 1500 none adhesive heat shrink is ideal for a wide range of low-voltage electrical and mechanical applications where increased flexibility and reduced weight are crucial. The medium wall heat shrink is especially well-suited for cable repair as well as insulation and joint protection. It is designed to provide excellent coverage and sealing for cable splices and terminations.

  • 3:1 shrink ratio

  • Resilient to moisture and chemicals

  • Medium Wall Cross-Linked Polyolefin

  • Withstands mechanical stress for higher product reliability

Show more

Details

CFM 1500 Size 38.1/12.7 None Adhesive Lined

CFM is a specialist solution that has been designed to suit a wide range of low-voltage applications, due to its unique blend of flexibility and toughness, it is very useful for protecting and insulating cable joints in low-voltage electrical systems. It's also a great choice for cable maintenance jobs.

It has the ability to withstand severe mechanical stress and abrasion. This feature considerably increases the product's overall durability and dependability by making sure it is able to endure any kind of abrasion that may arise over the course of its application.

One indication of its resilience is its strong resistance to impacts and abrasions. This characteristic is especially useful for protecting the structural integrity of the cables and the wires it shields from harsh environments.

Installing it is simple and quick, requiring only a heat gun or torch, which makes it a useful option for experts in the industry, because of its high shrink ratio 3:1, it can easily conform to the shapes of cables and uneven substrates.

Features and Benefits:

  • CFM 1500
  • UV Resistant
  • Medium Wall
  • RoHS compliant
  • 3:1 Shrink Ratio
  • Quick and efficient installation
  • Provides reliable electrical insulation
  • Shrink Temperature: 120°C min
  • Continuous Operating Temperature: -55°C to 110°C
More Information
More Information
Quick Search Code 104698
Applications

  • Splice covers for electrical cables

  • HVAC systems for pipes and ducts

  • Strain relief and environmental protection

  • Insulation cover or jacket repair on low-voltage cables

  • Provides mechanical protection against abrasion, vibration, and impact

  • It is used for repair and maintenance tasks, such as fixing damaged cable insulation or reinforcing weak spots in wiring.

  • The adhesive-lined heat shrink has excellent moisture sealing properties and is used to seal connections and joints in outdoor applications

Specification
Reference  Expanded  Recovered  Application Range
  Internal DIA (min) Internal DIA (max) Total Wall Thickness (nom)  General Use
  MM IN MM IN MM IN MM IN
1500 38.1 1.50 12.7 0.50 2.4 0.095 14.0-35 0.55-1.4
1700 43.2 1.70 12.7 0.50 2.5 0.100 14.0-40 0.55-1.6
2050 52.1 2.05 19.1 0.75 2.5 0.100 21.0-45 0.82-1.8
2750 69.9 2.75 25.4 1.00 2.5 0.100 30.0-63 1.2-2.5
3500 88.9 3.50 29.9 1.18 2.5 0.100 33-83.8 1.3-3.3
4700 119.4 4.70 39.9 1.57 2.7 0.105 40.6-114 1.6-4.5
6000 152.4 6.00 50.8 2.00 3.00 0.120 53.3-147 2.1-5.8
6700 170.2 6.70 58.4 2.30 3.00 0.120 70.0-165 2.4-6.5
9000 228.6 9.00 77.00 3.00 3.30 0.130 71.0-220 2.8-8.7
Downloads
File Icon CFM Spec Sheet (1.28 MB)
