CEMBRE HT51 Hydraulic Crimping Tool with Case

In stock
SKU : HTP-HT51-PC
Not Set
£859.99 £1,031.99

1 Unit

Please click the variations below to add to your product selection

0 Items in your selection £0.00 Selection Total
Back
Add Personalisation

  • Text
  • Number
  • Text & Number

Text Element

Save Back

Text & Number Element

Save Back

Number Element

Save Back
Skip Personalisation | Request a Callback

main product photo

This two speed lightweight and compact, hydraulic tool is ideal for working in confined spaces. Suitable for installing electrical compression connectors for conductors up to 240mm² (500MCM).

Details

CEMBRE Hand Held Hydraulic Crimping Tool with Plastic Case

  • Part No: HT51
  • Ergonomic Design
  • Durable Construction
  • Lightweight and easy to transport

Cembres HT51 hydraulic crimping tool has two speeds, it is lightweight and compact, and is ideal for working in confined spaces.

Having the benefit of spring-loaded handles, the dies can be advanced using only one hand; therefore leaving the other hand free to position the connector.

For ease of operation and comfort of the operator, the tool head can be fully rotated through 180 degrees.

For added safety, it features a pressure relief valve and a manual device for rapid pressure release.

Application Range: Suitable for installing electrical compression connectors for conductors up to 240mm² (500MCM).

Features and Benefits:

  • Portable
  • Versatility
  • Quick Change Dies
  • Precision and Reliability
  • Hydraulic Crimping Mechanism

This tool is supplied in a sturdy plastic case. Also suitable for storing 20 die sets. Dies not included, sold separately.

More Information
More Information
Quick Search Code 101728
Applications

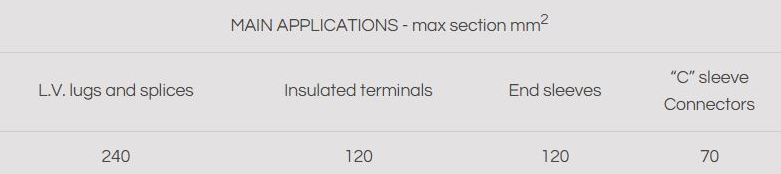

  • Suitable for installing electrical compression connectors for conductors up to 240mm² (500MCM)

  • Terminating cables in industrial settings, such as control panels, distribution boards, and electrical junctions

  • Making connections in power distribution systems, including for high-voltage cables.



Specification

Application Range:

Suitable for installing electrical compression connectors for conductors up to 240 mm2 (500 MCM)

Crimping force:

50kN (6 sh ton)

Rated operating pressure:

600 BAR (8,700 PSI)

Dimensions:

380 x 130mm (14.9 x 5.1in)

Max dimensions

380 x 295mm (14.9 x 11.6in)

Weight:

2.75KG (6lbs)

Recommended oil:

ENI ARNICA ISO 32 or SHELL TELLUS TX 32 or equivalent

Operating speed:

The tool has a twin-speed operation and automatically switches from a rapid advancing speed of the ram to a slower, more powerful crimping speed

Safety:

The tool is provided with a maximum pressure valve: MPC1 gauge is available to check the correct setting of the valve.



Downloads
File Icon Cembre Crimping Tool HT51 Spec Sheet (408.05 kB)
