Heavy Wall Heat Shrink size 85/25 Adhesive Lined Black HRHW

In stock
SKU : HRHW-85/25-ADH-0-STK
Special Offer
£7.49 £8.99

Various Pack Sizes available

Supplied as 1 mtr lengths

Please click the variations below to add to your product selection

0 Items in your selection £0.00 Selection Total
Add to Compare
Back
Add Personalisation

  • Text
  • Number
  • Text & Number

Text Element

Save Back

Text & Number Element

Save Back

Number Element

Save Back
Skip Personalisation | Request a Callback

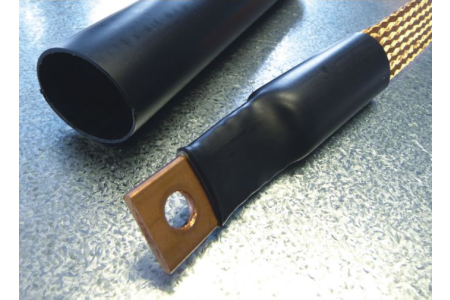

main product photo

Heavy wall heat shrinkable tubing with a 3:1 shrink ratio provides maximum reliability for insulating and protecting cable joints and terminations. As it is adhesive-lined, it ensures a snug, moisture-resistant seal, proving to be the ultimate solution for all your insulation and protection needs.

Details

Size 85mm I/D Expanded x 25mm I/D Recovered

  • Easy to Install
  • Secure Sealing
  • Robust Heavy Wall Thickness
  • Excels in Harsh Environments

Heavy wall heat shrinkable tubing is manufactured with durability as a priority. Its thick wall offers maximum reliability for insulating and protecting cable joints and terminations.

As it is adhesive-lined it provides a secure seal, acting as a barrier against moisture and other external environmental factors, enabling long-lasting performance and preventing corrosion.

The HRHW shrinks to a smaller diameter when heat is applied, and because of its high shrink ratio, 3:1 it fits securely over a variety of cable sizes and shapes.

Features and Benefits:

  • Rated for 600V
  • Shrink Temperature: 120°C
  • Continuous use Temperature: 90°C
  • Operating Temperature Range: -55°C to +110°C
  • Provides a Watertight Seal with Adhesive Lining
  • Optional thermoplastic adhesive liner for complete environmental protection and insulation
  • Withstands severe mechanical requirements of U.R.D, Submersible and direct burial installations

Applications

  • It can be used for insulating electrical connections, splices, and terminations

  • The heavy wall construction provides robust mechanical protection against abrasion, vibration, and physical damage

  • The adhesive lining creates a waterproof seal, making it suitable for outdoor applications or environments where exposure to moisture is a concern.

  • It is commonly used for bundling cables and wire harnesses, providing strain relief and organization while protecting against environmental factors.

  • HRHW heat shrink tubing can be used for repairing damaged cable jackets, providing a quick and effective solution for fixing exposed wires or insulation.

  • Due to its adhesive-lined design, it can be used for sealing and encapsulating components, such as connectors or splices, providing additional protection against moisture, chemicals, and contaminants.

Specification
Test  Test Method Typical Performance
Physical
Tensile Strength: ASTM-D 412, ISO 37 14,5 Mpa
Elongation: ASTM-D 412, ISO 37 600%
Longitudinal Change: ASTM-D 2671 + 1% to -10% (MAX)
Low Temp Flexibility: ASTM-D 2671 Meth, C Does not break at -55°C
Electrical
Dielectric Strength: ASTM-D 149 20 Kv/mm
Volume Resistively: ASTM-D 257 10,16  Ω x CM
Chemical
Copper Corrosion: ASTM-D 2671 No Corrosion
Chemical Resistance:   Good to Excellent
Water Absorption: ASTM-D570 0.1%
Downloads
File Icon HRHW Spec Sheet (413.45 kB)
