Roundit 2000 NX HT 13mm, High Temperature wrap-around sleeving in Olive Green

In stock
SKU : ROUND-IT-2000-NX-HT-13.0-5-SP
Not Set
£15.99 £15.99

Order in multiples of 1 mtrs to receive a continuous length, up to the next price break at 5 mtrs

For example, 4 x 1 mtrs will be delivered as a continuous 4 mtr length

Please click the variations below to add to your product selection

0 Items in your selection £0.00 Selection Total
Add to Compare
Back
Add Personalisation

  • Text
  • Number
  • Text & Number

Text Element

Save Back

Text & Number Element

Save Back

Number Element

Save Back
Skip Personalisation | Request a Callback

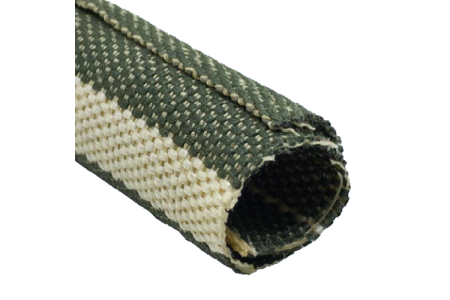

main product photo

ROUNDIT 2000 NX HT maintenance of wire and cable bundles, with excellent cut-through and abrasion resistance at +260C.

  • Excellent cut-through and abrasion resistance
  • Halogen free
  • Self-wrapping design
  • Easy installation
  • Ideal for reworking components without disconnecting them
  • Lightweight construction

Details

ROUNDIT 2000 NX HT is a self-wrapping sleeve manufactured from PEEK monofila­ments and Nomex multifilament. It includes a water repellent treatment in order to prevent the absorption of condensation build-up caused by the extreme changes aircrafts are subjected to. Designed for mechanical protection and maintenance of wire and cable bundles, its 100% covering ratio provides excellent cut-through and abrasion resistance. The self-wrapping design allows for quick and easy installation and removal of the product for assembly and maintenance. Roundit® 2000 NX HT also accommodates break cuts.



Temp: -60°C to +260°C, high mechanical protection, high temperature, oil and water repellent, halogen free.



The self-wrapping design allows for quick and easy installation and removal of the product for assembly and maintenance. ROUNDIT 2000 NX HT also accommodates break cuts. The high temperature version is differentiated from the standard ROUNDIT 2000 NX by a wide ivory tracer on the outer side.

Applications

Roundit® 2000 NX HT is a self-wrapping sleeve manufactured from PEEK monofilaments and Nomex® multifilaments.

  • It includes an oil and water repellent treatment in order to prevent the absorption of condensation build-up caused by the extreme changes aircraft are subjected to.
  • Designed for mechanical protection and maintenance of wire and cable bundles
  • 100% covering ratio provides excellent cut-through and abrasion resistance.
Specification
Property Test Method Result
Operating Temperature   -70°C to +260°C
Flammability / smoke density/ toxicity ABD 031 & FAR 25 § 853 Conforms
Water repellent EN 6059 Part 305 Pass
Abrasion Resistance EN 6059 Part 403 Pass
Dynamic cut-through EN 6059 Part 405 Pass
Resistance to electrical arcs EN 6059 Part 502 Details available on request
Fluid Resistance EN 6059 Part 303       Good resistance
- JP-5 Jet Fuel (Otan 144)
- Hydraulic Fluid (Skydrol 500 B4)
- Mineral Oil (MIL-L-7870A)
- Synthetic Oil (MIL-L-23699)
- De-Icing Fluid (MIL-A-8243)
- Cleaning Fluid (MIL-L-87936)
Mould Growth EN 6059 Part 306 Pass
Video
Downloads
File Icon ROUNDIT NX HT Specification Sheet (180.64 kB)
