3 x 4mm² - Triple Core Screened Automotive High Voltage Electric Vehicle Cable | Coroplast 9-2641

In stock
SKU : ELECTRIC-VEHICLE-CAB-EV40-3COR
Not Set
£14.99 £17.99

CUT TO LENGTH, NO WASTE! Order ANY Quantity upwards in increments of 1 mtrs

Order in multiples of 1 mtrs to receive a continuous length, up to the next price break at 5 mtrs

Please click the variations below to add to your product selection

0 Items in your selection £0.00 Selection Total
Back
Add Personalisation

  • Text
  • Number
  • Text & Number

Text Element

Save Back

Text & Number Element

Save Back

Number Element

Save Back
Skip Personalisation | Request a Callback

  • Buy 5 for £14.59 £17.51 per and save 3%
  • Buy 10 for £14.39 £17.27 per and save 4%
  • Buy 25 for £13.99 £16.79 per and save 7%
  • Buy 50 for £13.79 £16.55 per and save 8%
  • Buy 100 for £13.49 £16.19 per and save 10%

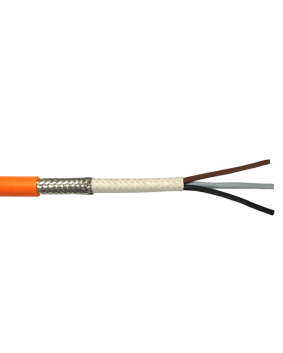

main product photo

4mm Triple Core Multi Stranded Coroplast 9-2641 Electric Vehicle Cable from premium German manufacturer Coroplast.  High voltage (HV), silicone insulated, tricore multi-stranded automotive cable for use in electric and hybrid vehicles for component interconnection.

Details

TRIPLE Core Silicone-insulated high-voltage (HV) cable  3 x 4mm² -  Coroplast 9-2641

Connection of HV batteries and electric engines (max. 600 V AC / 1,000 V DC)

This shielded orange cable is suitable for automotive electric powertrain HV connector assemblies, including KERS and ERS (Energy Recovery Systems). It also combines high voltage load handling, EMC shielding and exceptional flexibility required for various automotive applications. Insulated screened orange HV cable for use on electric and hybrid vehicles.

Specification:

  • Coroplast 9-2641
  • Suitable for Max 600V AC / 1000V DC
  • Plain copper conductors
  • Tinned copper screening braid and ALU-PET foiled shielding fro excellent EMC performance
  • Silicone rubber insulated
  • Suitable for use at temperatures from -40°C to +180°C with excursions up to 205°C
  • Low cross-sectional area for any application, reducing weight and construction room
  • Technical data sheet available on request
  • The conductor specifications shown are representative configurations. Actual cable strand may differ slightly
  • Conductor Specification = 56/0.31mm
  • Conductor Cross Section Diameter = max. 3.7mm
  • Maximum Overall Diameter = 11.3mm

FH­L2G­CB2G/ FHL­R2G­CB2G

  • Silicone-insulated
  • -40 °C to +180 °C
  • 2,50 mm² to 95,00 mm²
  • Foil and braided screen
  • Copper
  • Connection of HV batteries and electric engines (max. 600 V AC / 1,000 V DC)
Specification

High-voltage Copper Cables, Multi-Core, Shielded

Coroflex CORES CORE OUTER SHEATH RESISTANCE (d.c. 20 °C) (max.) CABLE WEIGHT
TYPE NO. NO. SIZE DIAMETER [mm] DIAMETER [mm] CONDUCTOR [mΩ/m] SCREEN [mΩ/m] approx. [g/m]
9-2641 2 x 2.5 mm² 3.00 -0.3 9.90 -0.6 7.8 6.5 160
9-2641 3 x 2.5 mm² 3.00 -0.3 10.40 -0.6 7.8 7.7 186
9-2641 4 x 2.5 mm² 3.00 -0.3 11.10 -0.6 7.8 7.0 223
9-2641 5 x 2.5 mm² 3.00 -0.3 12.10 -0.6 7.8 5.3 271
9-2641 2 x 4.0 mm² 3.70 -0.3 11.30 -0.6 4.8 6.1 220
9-2641 3 x 4.0 mm² 3.70 -0.3 12.10 -0.6 4.8 5.3 268
9-2641 4 x 4.0 mm² 3.70 -0.3 13.30 -0.6 4.8 4.4 330
9-2641 5 x 4.0 mm² 3.70 -0.3 14.50 -0.6 4.8 3.2 410
9-2641 2 x 6.0 mm² 3.70 -0.3 12.80 -0.6 3.2 5.4 290
9-2641 3 x 6.0 mm² 3.70 -0.3 14.10 -0.6 3.2 3.4 390
9-2641 4 x 6.0 mm² 3.70 -0.3 15.10 -0.6 3.2 3.4 453
9-2641 5 x 6.0 mm² 3.70 -0.3 16.30 -0.6 3.2 3.1 540
