Hellermann Tyton T50RFT7 2-Piece Fixing Ties with Fir Tree & Disc 200 x 4.6mm | 111-85871

In stock
SKU : HTP-T50RFT7-HB6P-PC
Not Set
£0.99 £1.19

Various Pack Sizes Available

Please click the variations below to add to your product selection

0 Items in your selection £0.00 Selection Total
Add to Compare
Back
Add Personalisation

  • Text
  • Number
  • Text & Number

Text Element

Save Back

Text & Number Element

Save Back

Number Element

Save Back
Skip Personalisation | Request a Callback

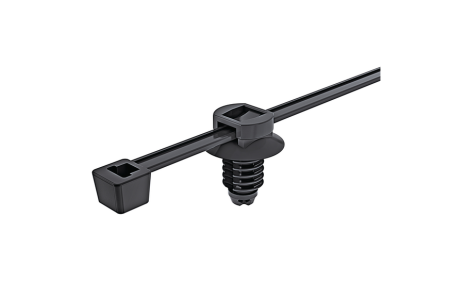

main product photo

T50RFT7 pre-assembled 2-piece fixing tie with fir tree foot part for round holes. Easy to assemble without the need for a tool. 2-Piece Fixing Ties with Fir Tree and Disc offer a simple and versatile method of bundling and fixing cables.

Details

Hellermann T50RFT7 2-Piece Fixing Tie 200 x 4.6mm | 111-85871

  • Easy to use
  • Pre-assembled
  • Made from Polyamide PA66HS
  • Max bundle diameter: 45.0mm

These T50RFT7 two-piece fixings are supplied ready assembled and offer a simple and versatile method of bundling and fixing cables. The fir-tree base will easily push into pre-punched holes in panels or threaded, blind, holes and offers a very secure fixing. The two-piece design enables the head of the tie to be orientated to the required position to ease assembly, whilst the 'disc' on the top of the fir tree covers the hole and minimises the ingress of water and dirt.

Features and Benefits:

  • Mounting Hole Diameter: 6.5 - 7mm
  • Suitable for use within threaded holes
  • Cable tie head can be moved after bundling
  • Easy to assemble without the need for a tool
  • Pre-assembled 2-piece fixing tie with fir tree foot part
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
More Information
More Information
Quick Search Code 103814
Applications

  • This fir tree design is ideal for use in thick panels and threaded, blind holes

  • The extra disc prevents dirt and dust from getting in

  • Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.

Specification



Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
ELV compliant Dir. Art. 4 (2) YES
Flammability UL 94 V2
Foot Part Polyamide 6.6, heat stabilised (PA66HS)
Hazardous good No
Material Polyamide 6.6, heat stabilised (PA66HS)
Operating Temperature - °C -40 °C to +105 °C, (+145 °C, 500 h)
Operating Temperature Foot Part (Metric) -40 °C to +105 °C, (+145 °C, 500 h)
Specifications



Bundle ∅ max. 45.0mm
Bundle ∅ min. 4.0mm
Disc ∅ 16.0mm
for Hole ∅ (FH) 6.5 - 7.0 mm
for Panel Thickness min - max 0.8 - 7 mm
for Panel Thickness min - max 0 - 0.3 "
Height (H) 1.2mm
Height (H2) 12.7mm
Length (L) 202mm
Length (L2) 11.6mm
Length (L3) 19mm
Length of Fir Tree 12.7mm
Min.Tensile Strength 225N
Panel Thickness max. 0.8–7.0mm
Thickness (T) 1.2mm
Width (W) 4.6mm
Width (W2) 11.6mm
Width (W3) 5.0mm
Downloads
File Icon T50RFT Range Spec Sheet (645.08 kB)
